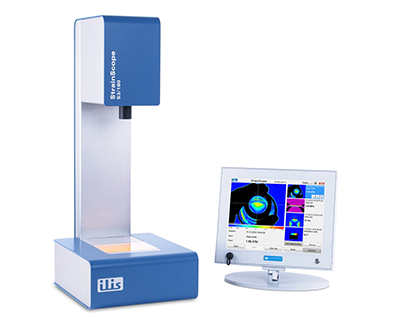

StrainScope® S3/180, S3/180C Series

自動分析計算透明材料應力光彈儀

特性:

‧客觀和可靠的結果
‧快速簡便的操作
‧現場測量品質改進
‧可追溯性的自動生產線檔案所有結果
‧降低成本的優化生產過程



Characteristic:

‧Objective and reliable results
‧Fast and easy operation
‧Improvement in quality by on-site measurement
‧Traceability by automatic archival of all results
‧Cost reduction by optimizing the production process






  • StrainScope® S3/180, S3/180C Series

    main application container glass (bottles, food jars, etc.),
    plastic films
    working distance approx. 410 mm
    illumination LED array, linearly or circularly (C) polarized
    image acquisition matrix camera with fixed focal lens
    image resolution 600 x 450 px
    image size approx. 150 x 112 mm
    spatial resolution approx. 0.25 mm/px
    measuring results polarization angle (°)
    temper number (ASTM C 148-00)
    optical retardation nm)
    normalized retardation(nm/cm, nm/in)
    integrated stress (MPa, psi)
    measuring range approx. -280 to +280 nm
    approx. 0 to 100 nm (C)
    interfaces USB 2.0, foot switch (1/4" jack)
    power supply 100-240 V AC, 45-65 Hz, 100 VA
    dimensions approx. 890 x 350 x 420 mm (H/W/D), w/o PC
